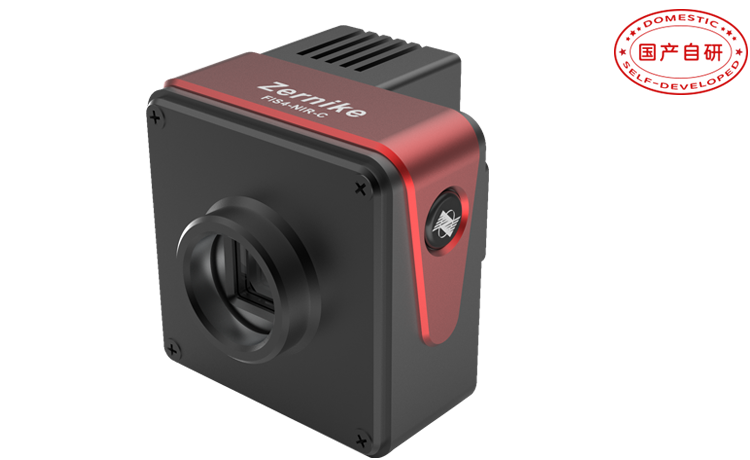

FIS4-Near-Infrared-C Four-wave Interferometric Air-Cooled Sensor

Product center Product center

Application scheme Application scheme

Industry field Industry field

Company profile Company profile

+ 86 180 1280 4887

FIS4-Far-Infrared-C

Four-wave Interference

Application:Laser beam wavefront detection, adaptive optics, optical system calibration, gas and plasma density measurement, internal lattice/homogeneity measurement of materials, and wavefront measurement of metasurfaces and metalenses.

Equipment advantages

◆ 100% domestically developed

◆ Single-path light self-interference, no reference light required

◆ 8μm~14μm (center band 10.6μm) band

◆ 15nm RMS high phase resolution

◆ Large dynamic range up to 260μm

◆ Extremely strong vibration resistance, no need for optical vibration isolation

◆ With laser interference fringe suppression design

◆ Support collimated beams and large NA converging beams

100% domestically developed, with ultra-high resolution of 160×128 (20480) phase points, it can achieve high-precision wavefront measurement in the 8μm~14μm (center band 10.6μm) band, which can be used for Laser beam wavefront detection, adaptive optics, optical system calibration, gas and plasma density measurement, internal lattice/homogeneity measurement of materials, and wavefront measurement of metasurfaces and metalenses, etc.

FIS4 FIR combines the patented random coded four-wave diffraction technology with an infrared camera to interfere at the rear image plane position. It has low requirements for light source coherence and does not require phase shifting. Ordinary imaging systems can achieve interferometric measurement. It has ultra-high vibration resistance and ultra-high stability, and can achieve nm-level precision measurement without vibration isolation.

Main feature

Easy to adjust

Like an industrial camera

Quick to use

Single optical path, good vibration resistance

No vibration isolation required

Measurement can be done on an ordinary wooden table

Measurement

Repeatability better than

1/1000λ

Compatible

Infrared, ultraviolet

Visible light band

With high-speed camera

can achieve

ultra-high frame rate sampling

One-to-one

guidance

light path construction

Application examples

Optical system aberration measurement optical path

Optical system aberration measurement example

Optical system calibration light path

Optical System Calibration Measurement Example

Metasurface wavefront measurement detection optical path

Metasurface Wavefront Measurement Example

Optical path for measuring internal density distribution of materials

Example of measuring the lattice distribution inside a material

Superlens wavefront measurement optical path

Metalens wavefront measurement example

Product specification

Light Source Type	Continuous laser, pulsed laser, LED, halogen lamp, and other broadband sources
Wavelength range	8μm~14μm (center band 10.6μm)
Target size	9.6mm×7.68mm
Spatial resolution	60μm
Sampling resolution	160×128
Absolute accuracy	70nmRMS
Phase resolution	≤15nmRMS
Dynamic range	≥260μm
Sampling rate	40fps
Real-time processing speed	10Hz（Full resolution）
Interface type	GIGE
dimension	75mmx75mmx66.1mm
weigh	about 615g
Cooling Method	None

Professional software

◆ Friendly software interactive interface, displaying 3D morphology and contour map

◆ Output PV, RMS, POW, PSF, OTF, MTF and other numerical values

◆ Freely select the measurement area in circular or square shape, and freely adjust it after selection

◆ Real-time dynamic acquisition and display, convenient for dynamic observation of 3D waveform changes

◆ Can measure the height value curve by pulling the wire, calculate the numerical parameters such as regional roughness
